Remote RC80HB Quick Reference Guide

Written by Groove

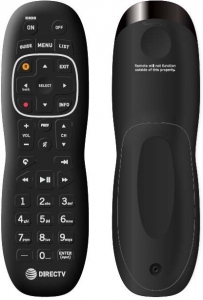

Overview of the DIRECTV Universal RC80HB Remote

Universal Remote Control Quick Reference Guide RC80HB

CONTROLLING YOUR TV

Turn on the TV.

  1. Locate the 5‐ digit code for your TV.
  2. Turn on the TV.
  3. Press and hold MUTE and SELECT at the same time until the green light flashes twice.
  4. Using the number keys enter the 5‐digit code for your brand of TV. If performed correctly, the green light under the TV flashes twice.
  5. Aim the remote at your TV and press VOL or MUTE key once. Your TV should ramp up or down or MUTE. If Volume does not change, repeat steps 3 and 5, trying each code for your brand until you find the correct code.

Activating RF

To pair the DIRECTV remote control to the STB, perform the following steps:

  1. Press and HOLD MUTE and SELECT at the same time until the green light flashes twice.
  2. Enter digits 961 follow by CH up key.
  3. Using the number keys enter the last six digits of the RID number located behind the STB.
  4. Press and release ENTER key (the green light flashes twice).

Deactivating RF

To deactivate the RF Transmitter on the DIRECTV remote control, perform the following steps:

  1. Press and hold MUTE and SELECT at the same time until the green light flashes twice.
  2. Using the number keys enter 9613.
  3. Press and Release CH Down. (Green LED flashes four times)

RESTORING FACTORY DEFAULT SETTINGS

To reset all the functions of the remote control to the factory default settings following these steps:

  1. Press and hold MUTE and SELECT at the same time until the green light flashes twice.
  2. Using the number keys, enter 9‐8‐ (The green light flashes 4 times).

COMPLIANCE WITH FCC RULES AND REGULATIONS

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase or decrease the separation between the equipment and receiver.
•Connect the equipment into an outlet different from that to which the receiver is connected.
·Consult the dealer or an experienced remote control/ TV technician for help.

This equipment has been verified to comply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment.

FCC Authorization Label

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference.
  2. This device must accept any interference received, including interference that may cause undesired operation.

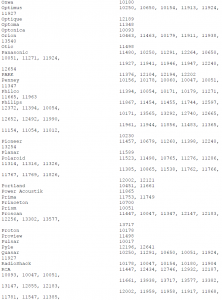

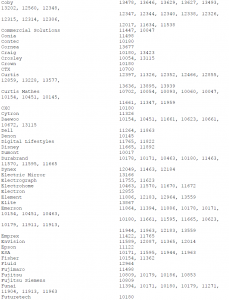

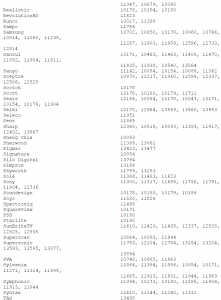

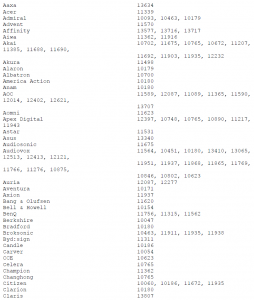

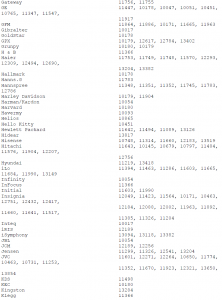

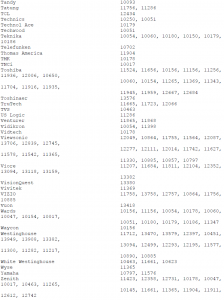

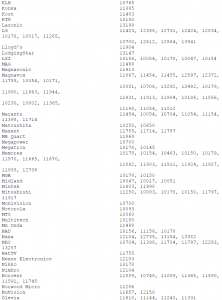

SETUP CODES FOR TV’s

To reset all the functions of the remote control to the factory default settings following these steps:
